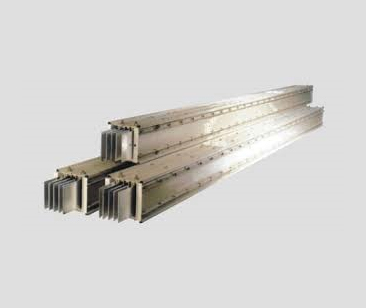

Aluminium Enclosure

Complies with: IEC 61439-6, IEC 60529 & IEC 60947
Voltage rating: ≤ 1000V, 50/60 Hz
Current rating: 630A to 6300A
Conductor: Copper with Tin/ Silver (Optional) Coating
Insulation: Class B Epoxy insulation (130° C), Class F Epoxy Insulation (155° C) (Optional)
Housing: Extruded Aluminium Housing
Ingress Protection: IP 54 for Indoor installation, IP65 /67 for Outdoor installation

Tech Catalogue: Available on Request.
